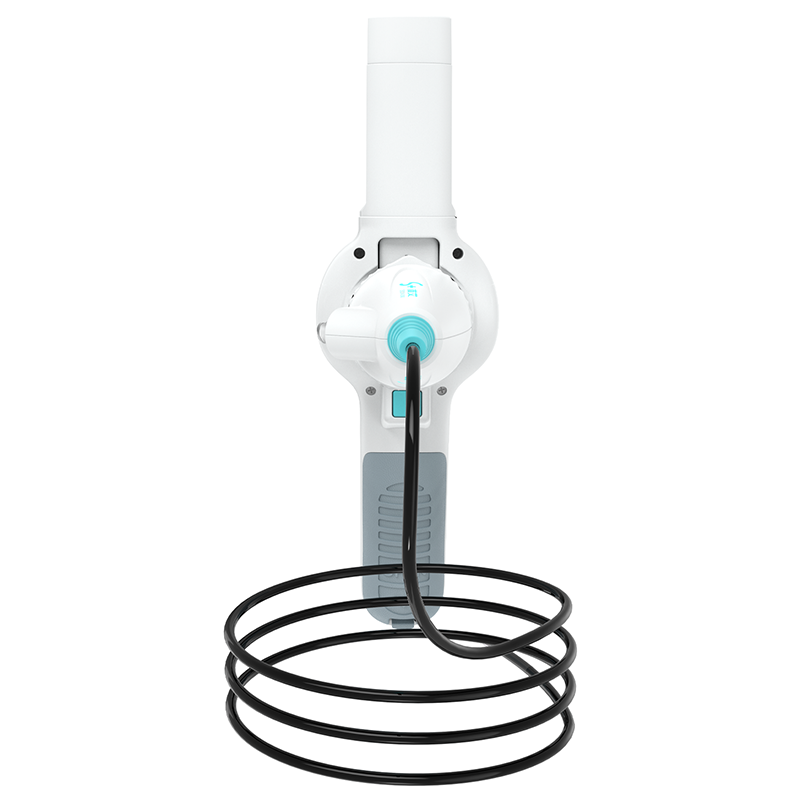

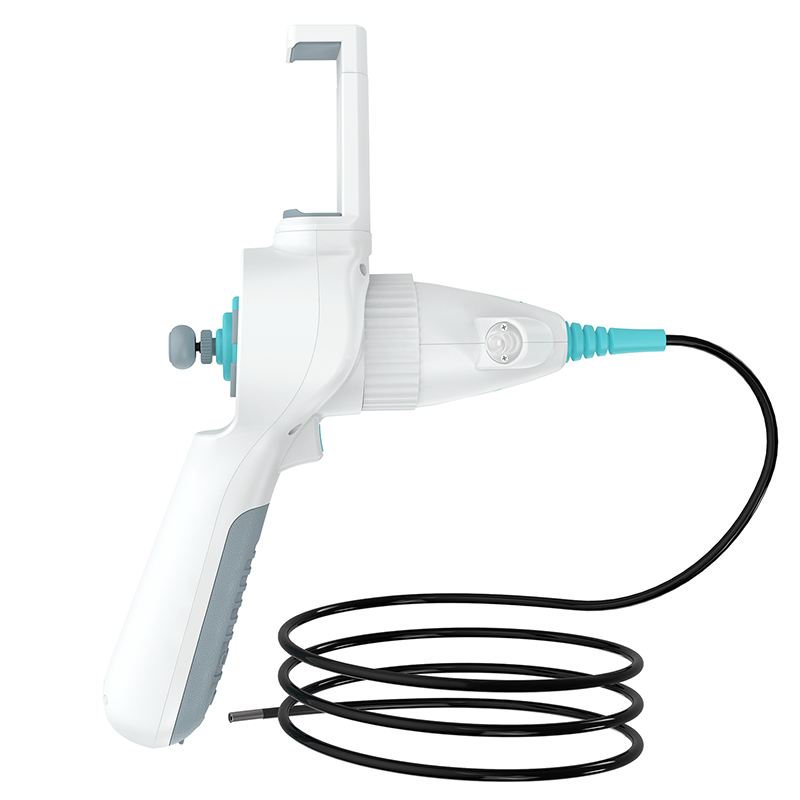

The SA‑W is a lightweight, portable veterinary endoscope from the SOAIM SA Series. With no built‑in display, it connects via Wi‑Fi or Type‑C to smartphones, tablets, monitors, and other smart devices. The dedicated companion app enables full diagnosis, treatment, and data management. Sharing the same precision engineering as the SAPro-W, it supports minimally invasive exams and procedures (digestive/respiratory tracts) in dogs, cats, cattle, horses, and other animals – including lesion detection, biopsy, irrigation/aspiration, and cavity insufflation. Extremely compact and mobile, the SA‑W is ideal for house calls, multi‑room clinic rotation, outdoor diagnosis, and small clinics. The intelligent app also enables digital case management and automated report generation.
Wireless & ultra‑portable – No built‑in screen; compact and lightweight. Dual connectivity (Wi‑Fi hotspot + Type‑C wired) frees you from cable constraints, ready for use anywhere.
Dual‑mode control – Essential operations (power, freeze, record, capture, brightness, probe articulation) via physical buttons. Advanced functions (image fine‑tuning, case archiving, report generation, data sharing) via the dedicated app – clear division for efficiency.
Full accessory compatibility – Shares the same interchangeable probes and all functional accessories with the SA‑Pro. 3‑second quick‑swap, with full cross‑compatibility across all probe specifications – reducing procurement, inventory, and maintenance costs.
Smart digital diagnostics – The dedicated app offers real‑time HD preview, 5× partial zoom, image parameter adjustment, case classification, one‑tap report generation, and media sharing – meeting the digital needs of modern veterinary practice.
Durable & hygienic construction – Probe IP67 (immersion‑proof disinfection) meets strict infection control requirements. Medical‑grade polyurethane shaft – flexible, kink‑resistant, and abrasion‑resistant for high‑frequency, demanding veterinary use.
Long battery life in a light package – Same removable 3.7V/5000mAh lithium battery as the SAPro-W, providing 4 hours of continuous runtime. Lightweight body reduces fatigue during extended handheld operation – ideal for long mobile visits.
High-definition imaging delivers a clear field of view for your pet veterinary endoscope examinations.
This veterinary endoscope is equipped with 160,000 / 500,000 / 1,000,000 pixel modules to match different inspection requirements, capturing sharp, detail-rich images. It features a 120°–140° wide field of view for broad observation and fewer blind spots. The depth of field ranges from 5–100 mm, enabling crisp imaging for both near and far focus during animal endoscopic procedures.
Front-facing LED lighting with 0–3 adjustable brightness levels ensures optimal viewing conditions for every examination. Customizable specifications support inspections of different anatomical sites in pets and animals.

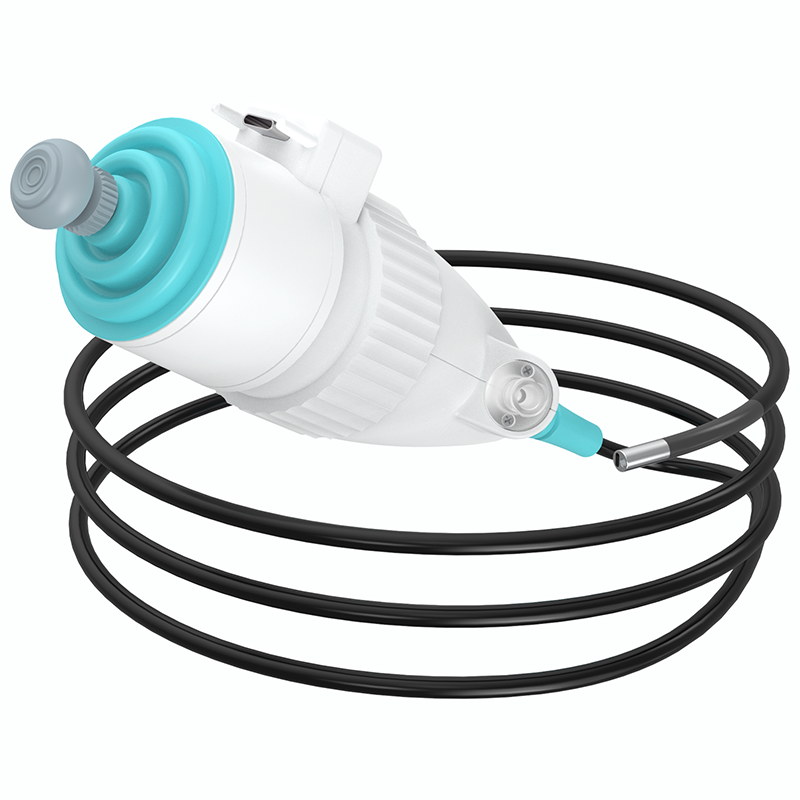

The tube probe connects rapidly via Type-C interface for fast probe replacement. Our veterinary endoscope adapts to varied animal body sizes and examination sites, including respiratory tract and digestive tract examinations.
One main unit works with multiple probe tubes, greatly cutting equipment procurement and maintenance costs for veterinary clinics.
This veterinary endoscope adopts a Y-type valve that integrates air injection, water injection, suction and instrument channels for streamlined endoscopic examinations.
When connected to a manual airbag, it enables cavity expansion to widen the field of vision for pet endoscopic procedures. Attaching a syringe supports lens water flushing or fluid aspiration, keeping the view clear throughout veterinary surgery and examinations.
The veterinary endoscope also accepts disposable accessories including biopsy forceps and cell brushes, allowing veterinarians to perform in-situ tissue sampling conveniently during pet diagnosis.
Our veterinary endoscope series offers two models for flexible veterinary practice deployment: SAPro-W and SA-W.
SA-Pro veterinary endoscope features a 5-inch HD screen (800×480). It is ready to use out of the box with intuitive controls for pet endoscopic examinations. It supports MicroHDMI output to external monitors for split-screen viewing during veterinary diagnosis and procedures.
SA-Air veterinary endoscope adopts a wireless connectivity design. It can pair with smartphones or tablets via Wi-Fi or wired connection. Core functions are operated through a dedicated app, simplifying endoscopic image storage, management, and case sharing with pet owners.

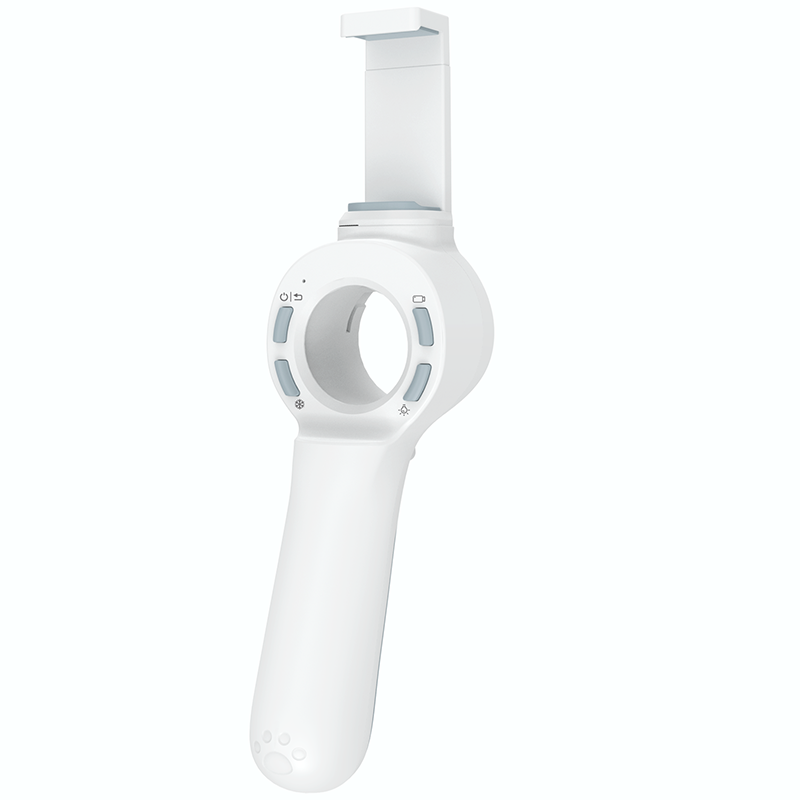

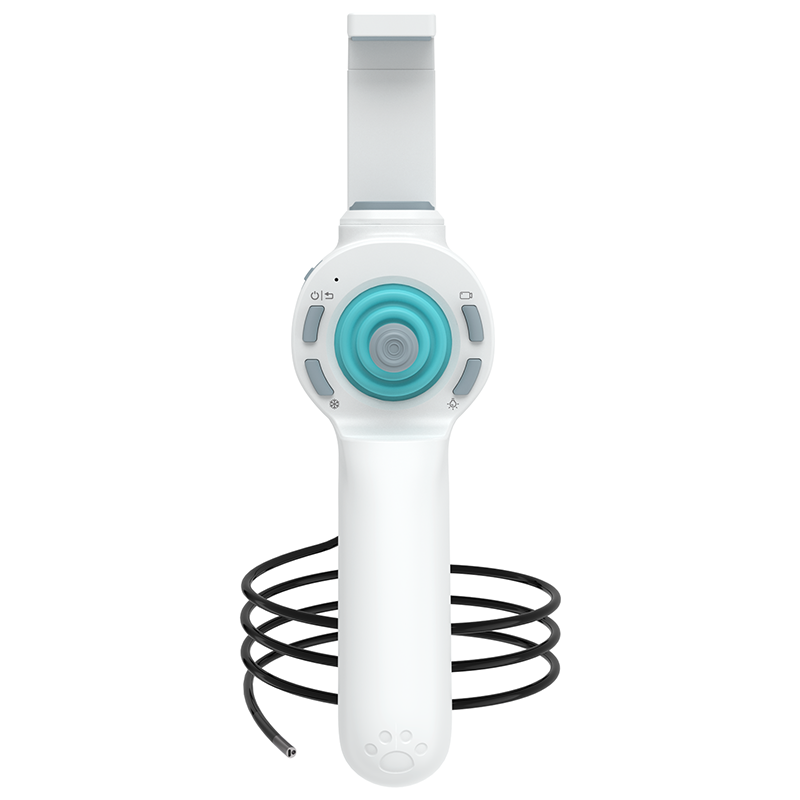

This veterinary endoscope main unit comes with physical shortcut buttons for photo capture, video recording, image freeze and light adjustment, delivering simple and intuitive operation for veterinarians. The joystick-guided probe enables 360° omnidirectional steering with flexible bending and precise positioning during pet endoscopic exams. It supports instant image freezing to quickly capture transient lesion details. Menu-based system settings allow fine-tuning of image parameters including brightness and color. Streamlined human-computer interaction supports one-click report generation to simplify veterinary case documentation.
The probe of our veterinary endoscope reaches IP67 protection grade. It can be immersed and washed, complying with clinical veterinary disinfection standards. The insertion tube is made of polyurethane material, featuring great flexibility, excellent kink resistance and long wear life.
This veterinary endoscope is equipped with a built-in 3.7V / 5000mAh high-capacity lithium battery, delivering ≥4 hours of continuous working time. It adopts Type-C charging for convenient power supply and compatibility with widely available chargers. TF card storage expansion up to 32GB is supported to store veterinary medical records. Images and videos can be imported and exported via data cable for easy medical record archiving and sharing among veterinary teams.
Main Unit | |
Parameter | Specification |
Product Type | Wireless portable veterinary endoscope (no built‑in display) |
Display | None (requires external smartphone/tablet/monitor) |
Operation | Physical buttons + dedicated app |
Connectivity | Wi‑Fi hotspot, Type‑C wired |
Image Functions | Capture, record, freeze, 5× partial zoom (via app) |
File Format | JPEG/BMP, MP4 |
Light Adjustment | LED, 0–3 levels |
Storage | Mobile phone storage via Wi‑Fi connection |
Interface | Type‑C |
Languages | Synchronized with external app – 10+ languages |
Firmware Upgrade | — |
Dimensions | 140 × 259 × 84 mm |
Weight (with battery) | 0.45 kg |
Tube System | |
Parameter | Specification |
Diameter | Φ3.9mm (160k/500k pixels), Φ5.8mm (1M pixel) |
Field of View(FOV) | Φ3.9mm: 120° ; Φ5.8mm: 140° |
Depth of Field | 3–50 mm |
Steering Control | Mechanical-controlled joystick, 360° all-way articulation |
Bending Angle | 180°–210° |
Tube Material | Medical‑grade polyurethane |
Tube Length | 100 cm |
Connection | Type‑C, 3‑second quick‑swap |
Protection | Probe IP67 (dust-tight and waterproof; supports immersion disinfection) Main unit IP54 |
Power & Environment | |
Parameter | Specification |
Battery | 3.7V/5000mAh removable |
Runtime | 4 hours |
Charging Time | ≤2.5 hours |
Operating Temp. | Main unit: –10°C to 50°C; Probe: –20°C to 60°C |
Storage Temp. | –20°C to 60°C |
Humidity | 15%–90% |
